ACCESS TO CLEAN WATER IS UNFORTUNATELY NOT A PRIVILEGE AFFORDED TO EVERY PERSON IN THE WORLD. THE PRIVILEGE OF A CLEAN SHOWER AND A PLACE TO CLEAN YOUR CLOTHES IS A NOVELTY TO MANY PEOPLE ACROSS THE GLOBE.
THIS PROJECT AIMS TO HAVE A GLOBAL EFFECT, DELIVERING A PLACE TO SHOWER, CLEAN CLOTHES, AND MAKE CLEAN WATER AVAILABLE TO ENTIRE CIVILIZATIONS.

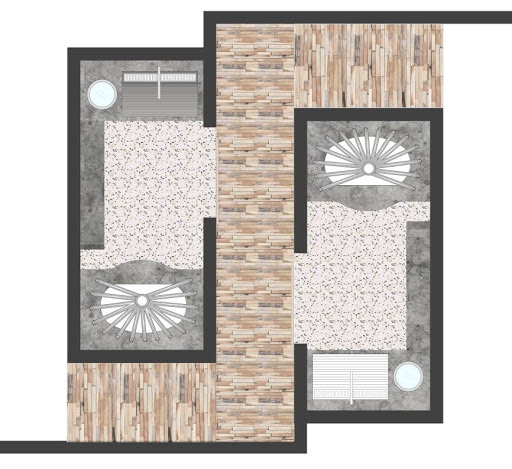

SPACE PLAN (PHOTOSHOP)
ELEVATION/SECTION COMBO (PHOTOSHOP)
900 MILLION
PEOPLE ACROSS THE
WORLD DO NOT
HAVE ACCESS TO
CLEAN WATER,
INCLUDING 2,000,000
AMERICANS.
*THIS PROJECT WAS ASSIGNED TO BE DONE PREDOMINANTELY WITH HAND-DRAWN WORK
DIGITAL PRESENTATION MATERIALS WERE KEPT TO A BARE MINIMUM.*
SHOWER AND DRYING COMBO UNIT TAKES INTO ACCOUNT THE FACT THAT NOT ALL VISITORS WILL HAVE ACCESS TO A CLEAN TOWEL. THIS UNIT ACTS AS BOTH A SHOWER (VERTICAL PIPES) AND A DRYING VENT THAT UTILIZES FRESH AIR INSPIRED BY A CAR WASH (TOP VENT)

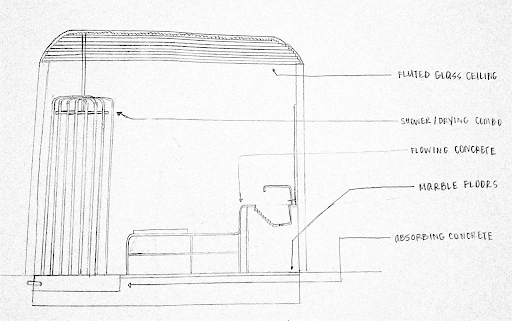

ROUGH SECTION OF ALL ELEMENTS

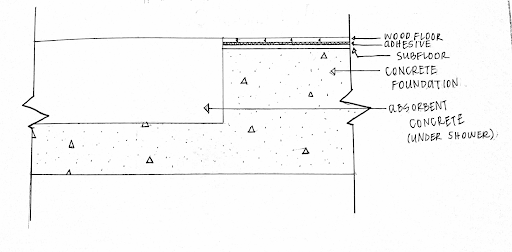

THIS DETAIL SHOWS WHERE THE CONCRETE SLAB MEETS FINISH FLOOR AND THE NEWLY-DEVELOPED ABSORBENT CONCRETE FLOORING UNDER THE SHOWER UNIT.
SHOWER/DRYING UNIT COMBO SECTION

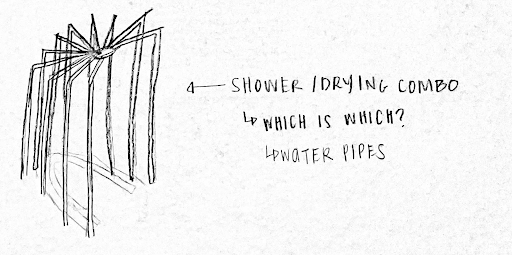

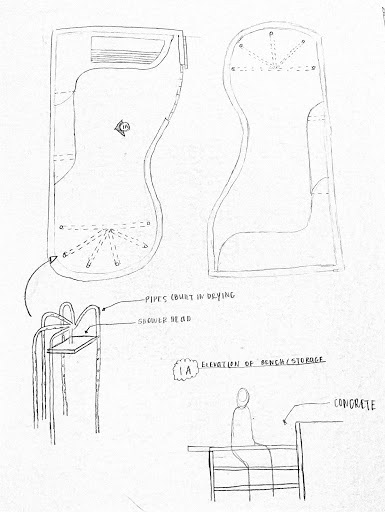

SHOWER/DRYING UNIT COMBO DEVELOPMENT WORK

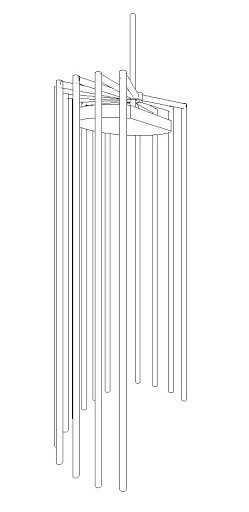

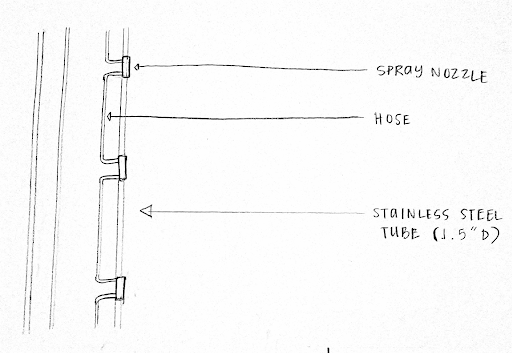

SHOWER VERTICAL PIPE DETAIL
SHOWER PROCESS

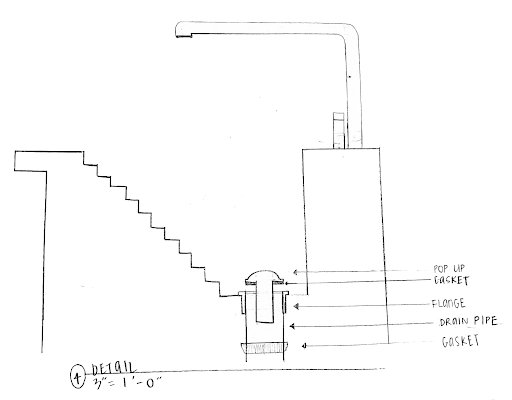

THIS SINK/WASHER COMBO WAS INSPIRED BY OLD-TIME CORRUGATED STEEL WASHBOARDS. IT INCLUDES A 45 DEGREE SLOPE WITH SMALL STEPS TO ACT AS A PLACE TO WASH YOUR CLO
THES WITHOUT USING ANY ELECTRICITY, MAKING THE PROJECT POSSIBLE IN EVEN THE MOST REMOTE OF LOCATIONS.
THES WITHOUT USING ANY ELECTRICITY, MAKING THE PROJECT POSSIBLE IN EVEN THE MOST REMOTE OF LOCATIONS.

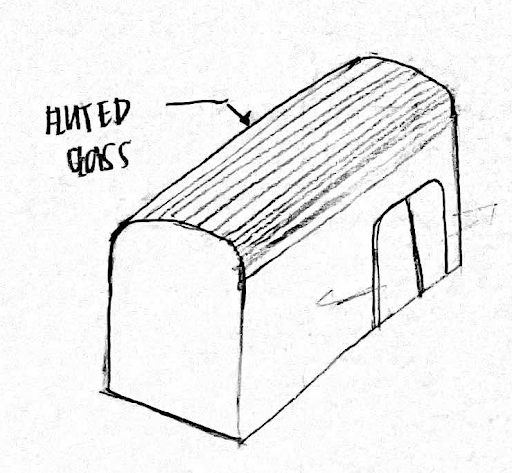

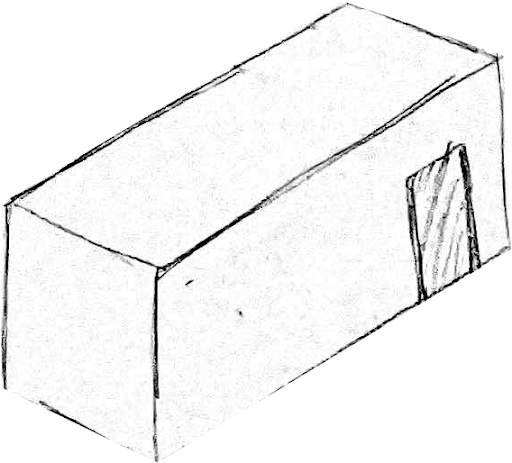

PROCESS
